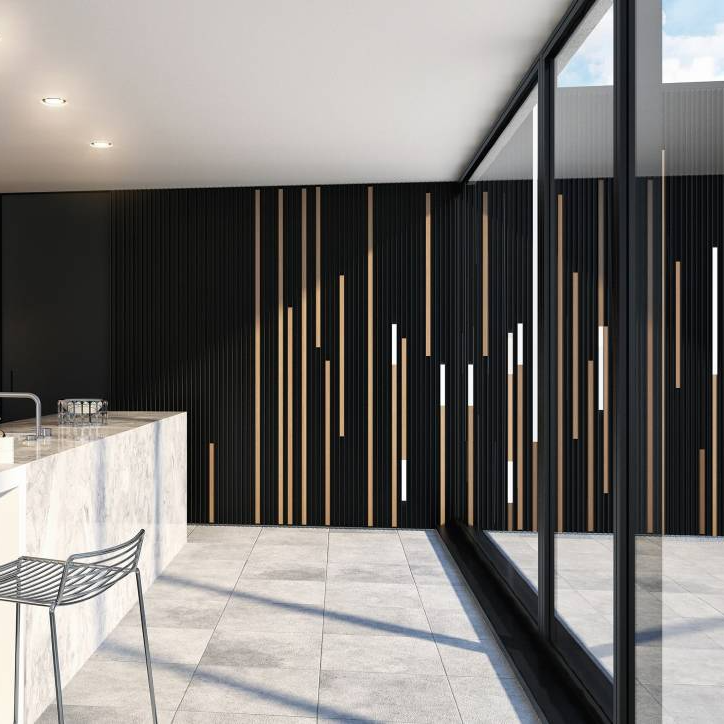

Linarte - Direct anchoring solution

Renson Linarte cladding solution is receiving some significant updates in 2020. The key innovation that we would like to highlight is the direct anchoring solution of the supporting profiles to the wall. Ventilated cladding is traditionally glued or screwed onto wooden beams. If you prefer a more durable and fire-safe alternative without undesirable deformations, it is better to opt for a lightweight aluminium supporting structure. Linarte can be attached to both types of supporting structures, but now thanks to an innovative plug that screws directly into the aluminium Linarte supporting profile, we combine the advantages of both systems. This results in an economical, durable and quick to install fastening system with a minimal total thickness. The Linarte profiles are screwless fastened to horizontal support profiles via plastic clips. The replacement of possibly damaged profiles is quick and easy. The Linarte profiles are supported at the bottom, but can move freely in the plastic clips. This allows them to expand and contract easily under the influence of temperature variation. In high-rise buildings, the profiles are secured with a steel fire clip. Dimensional deviations in the width direction are easily compensated by the possibility to move the clips from -2mm to +2mm. The product has won a Red Dot Award. Composition of the product: Profiles: Aluminum - Al Mg Si 0,5 (F25) / Plastic clips: POM
